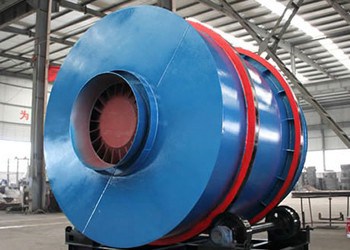

River Sand Dryer

River Sand Dryer

River sand dryer is mainly used for drying river sand as well as sand, slag, coal cinder and silica sand. This machine has reasonable design structure and convenient and simple use and it can quickly drying large quantity of sand.
Email: market@sinoftm.com

Features

River Sand Dryer

River sand dryer is mainly used for drying river sand as well as sand, slag, coal cinder and silica sand. This machine has reasonable design structure and convenient and simple use and it can quickly drying large quantity of sand.

River Sand Dryer

Product Features:

1. Small coverage area: Compared with simple-cylinder dryer, the coverage area of this machine is decreased by 60% and the infrastructure investment is reduced by 60%.

2. Low energy consumption: The coal consumption is one third that of the single-cylinder dryer.

3. High drying efficiency: The heat efficiency of this machine is improved by over 40%.

4. Good drying effect: The final water content can be ensured below 0.1-1%.

Technical data

Item/Unit/Model Φ2.5×7m Φ2.7×7m Φ3.0×7.0m Φ3.2×7.0m Φ3.6×8m
Diameter of outer cylinder(m) 2.5 2.7 3.0 3.2 3.6
Length of outer cylinder(m) 7 7 7.0 7.0 8
Cylinder volume( m³ ) 16.63 16.63 52.678 52.678 81.38
Rotating speed of cylinder(rpm) 4-10 4-10 4 -10 4 -10 4 -10
Initial moisture of slag(%) 10-12 10-12 10-12 10-12 10-12
Final moisture of slag(%) 1 1 1 1 1
Initial moisture of yellow ground(%) 8-10 8-10 8-10 8-10 8-10
Final moisture of yellow ground (%) 0.5-1 0.5-1 0.5-1 0.5-1 0.5-1
Highest intake air temperature(℃) 700-750℃ 700-750℃ 700-750℃ 700-750℃ 700-750℃
Production capacity(T/h) Yellow sand25-30
Slag20-25
Yellow sand30-35
Slag25-30
Yellow sand35-40
Slag30-35
Yellow sand45-50
Slag35-40
Yellow sand65-70
Slag60-65
Motor type Y2-132m-4E Y2-132m-4E Y2-160m-4 Y2-160m-4 Y2-160m-4
Motor power(kw) 7.5×2 11×2 7.5×4 7.5×4 15×4
Reducer type XWD7-23-11W XWD7-23-11W XWD6-23-7.5KW XWD6-23-7.5KW XWD8-23-15KW
Velocity ratio of reducer 29 29 29 29 29
