Stone Crusher

Stone Crusher

Rock crushersare also called stone crushers. Rock crusher is used to crush the soft, middle hard or very hard materials. Stone crusher is widely applied in various ore, cement, refractories, aluminum soil clinker, diamond sand, mechanism building sand, and various metallurgical slag.
Email: sales@sinofote.com

Features

Basic Information of Stone Crusher:

Rock crushers are also called stone crushers. Rock crusher is used to crush the soft, middle hard or very hard materials. Stone crusher is widely applied in various ore, cement, refractories, aluminum soil clinker, diamond sand, mechanism building sand, and various metallurgical slag.

Classification of Stone Crusher:

Rock crusher can be classified into jaw crusher, mobile crusher, impact crusher, compound crusher, hammer crusher, vertical shaft impact crusher, gyratory crusher, cone crusher, roll crusher and so on.

Stone crusher

Maintenance of Stone Crusher:

1. The bearing takes all the load of the machine, so good lubrication has a great effect on the life expectancy of bearing and directly affects the life span and running rate of the crusher. So the lubricating oil injected should be clean and well sealed. The places should be lubricated are: (1) rotary bearing (2) roll bearing (3) all gears (4) moving bearing, and sliding plane.

2. The new installed tires prone to loosening so it must be checked often.

3. Pay attention on whether every part of the machine works normally.

4. Check the degree of wearing of wear parts, and always pay attention to replace the worn parts.

5. If the temperature of bearing raised, immediately stop to find the causes and eliminate them.

6. If there is impact sound when the rotary bearing is in operation, immediately stop to check and eliminate the sound.

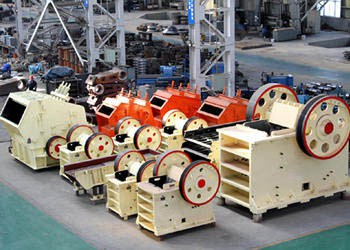

Stone crusher

Stone crusher manufacturer

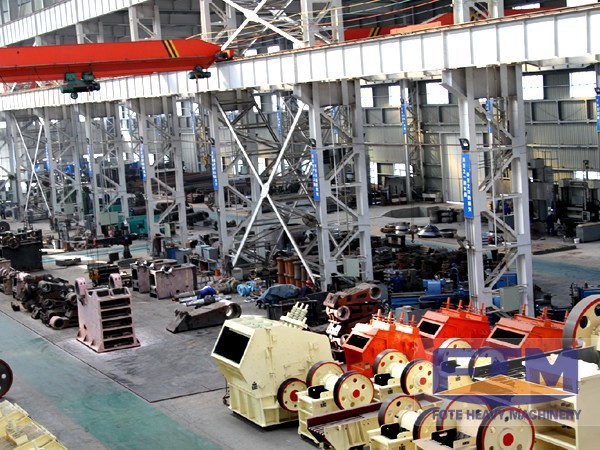

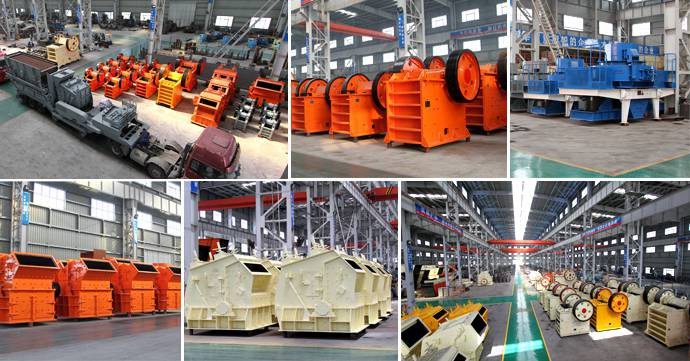

Fote Heavy Machinery is a manufacturer specializes in small, medium and large stone crusher, with a number of advanced production lines. The crushing equipment made by Fote can be used to crush various brittle materials like stone, ores, solid waste and so on. Fote is with great production strength and rich production experience, and Fote products are exported to all over the world. Here is the workshop picture of crushing machine:

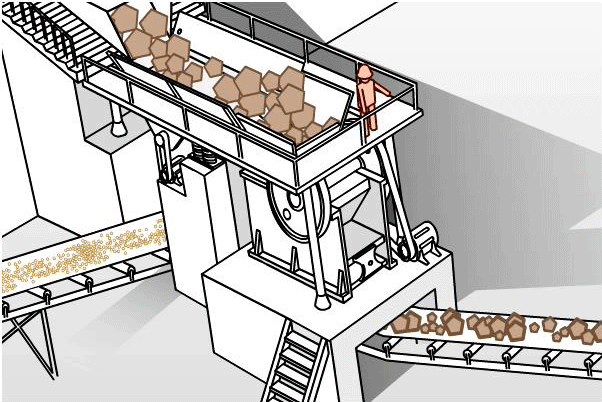

jaw crusher

Unique Features of Stone Crusher:

1. High crushing efficiency with fine, coarse grinding function;
2. Simple structure, convenient installation and maintenance, low operation cost;
3. Be barely affected by the material moisture content, moisture content can up to 8%;
4. Excellent product grain shape;
5. Large product packing density, minimal iron pollution.

Technical data

Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-64 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
