Impact Crusher

Impact Crusher

Impact crushers are also known as impact crusher machine or impact crushing machines. Impact crusher is a type of new high-efficiency crushing equipment.
Email: market@sinoftm.com

Features

Product Introduction to Impact Crusher:

Impact crushers are also known as impact crusher machine or impact crushing machines. Impact stone crusher is a type of new high-efficiency crushing equipment.

It can crush various coarse, medium and fine materials ores, rocks (granite, limestone, concrete etc.) with particle size no more than 120-500 mm and compressive strength no more than 320 MPa. Impact crusher is widely used in water and electricity, highway, artificial aggregate, crushing and other industries.

Fote is a famous rock impact crushers supplier and one of the well-known stone impact crusher manufacturers.

Features of Impact Stone Crusher:

1. Unique structure.
2. High efficiency.
3. Adjustable particle size
4. Large crushing ratio, energy saving.

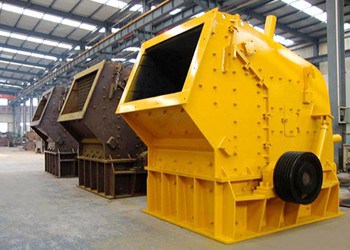

impact crusher

Technical data

Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Overall
dimension
(L×W×H)
(mm)
Total
weight
(t)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 2330×1660×2300 12
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 2370×1700×2390 15
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 2680×2160×2800 17.7
PF-1214 Φ1250×1400 400×1430 350 80-180 6P   132 2650×2460×2800 22.4
PF-1315 Φ1320×1500 860×1520 500 100-280 6P   200 3180×2720×3120 27
PF-1320 Φ1300×2000 993×2000 500 140-380 6P   250 3220×3100×3120 34
PF-1520 Φ1500×2000 830×2040 700 200-550 4P   315-400 3959×3564×3330 50.6
PF-1820 Φ1800×2000 1260×2040 800 400-800 4P   630-710 4400×3866×4009 83.21
