Coal crusher

Coal crusher

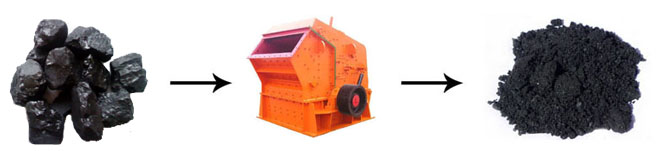

Coal crusher is one kind of crushing equipment used for crushing lump coal into small size, so it’s also known as coal crusher machine, coal crushing equipment.
Email: sales@sinofote.com

Features

Coal Crusher

Coal crusher is one kind of crushing equipment used for crushing lump coal into small size, so it’s also known as coal crusher machine, coal crushing equipment. There are several types of coal crushers with different working principles, and this article focuses on working principle and purchasing tips of coal crusher.

Coal is one of the most important natural resource, but raw coal cannot be used directly on life and industrial production because its large size. Therefore, block coal needs to be crushed by coal crushers.

Classification of Coal Crushers:

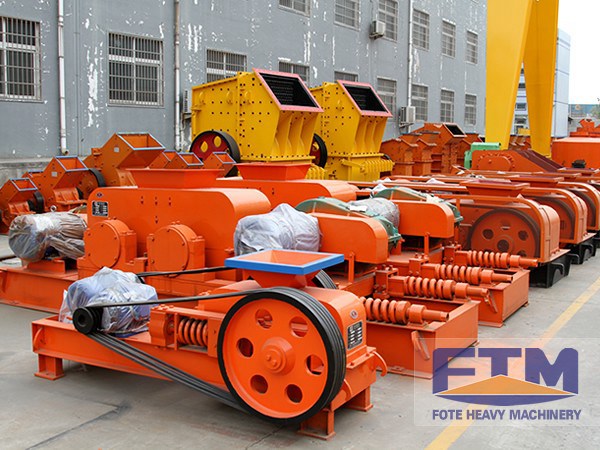

Roller Coal Crusher

1. Roller Coal Crusher

Both roller crusher and toothed-roll crusher can be used as coal crushing equipment. Roller crusher and toothed-roll crusher crush coal by squeezing coal with rollers.
Roller coal crusher has two relatively rotating crushing rollers. Rollers of toothed-roll crusher are with tooth-like metal gear which can break coal effectively, and the crushed coal is with uniform particle size.

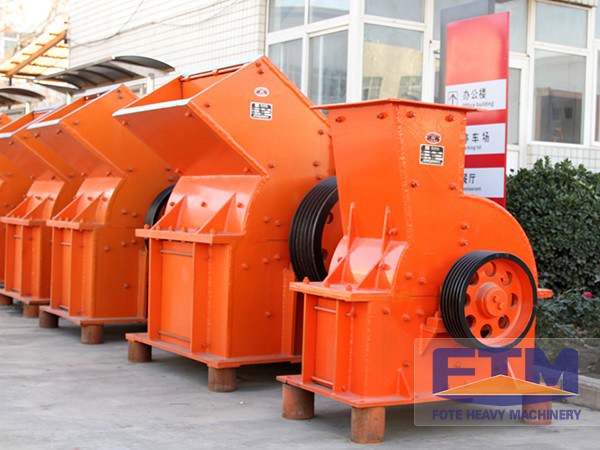

Hammer Coal Crusher

2. Hammer Coal Crusher

Hammer coal crusher crush block coal by striking coal with hammer head, so the working principle of hammer coal crusher is totally different from roller coal crusher.
Hammer coal crusher can be pided into single-rotor hammer coal crusher and dual-rotor hammer coal crusher, and dual-rotor hammer coal crusher has another name of two-stage crusher. Two-stage hammer coal crusher is without screen, so it can crush either dry or wet materials.

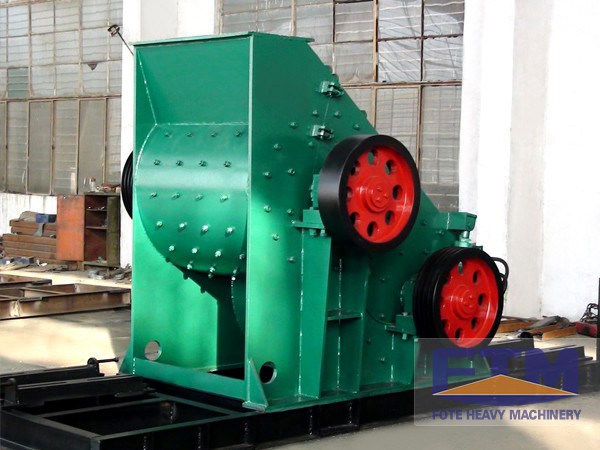

Two-stage Coal Crusher

3. Two-stage Coal Crusher

Two-stage coal crusher can crush materials into uniform particle size, and the size of almost all final products can be controlled below 2 mm. Two-stage coal crusher, like dual-rotor hammer coal crusher, crush materials by the dual rotors. Materials are sent into the cavity, and crushed by the first rotor, and then crushed by the second rotor. The crushing cavity of two-stage coal crusher is enclosed, and materials rapidly impact each other and crush each other, so as to achieve the desired crushing effect. Finally, crushed materials will be directly discharged through discharging port.

Technical data

Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Overall
dimension
(L×W×H)
(mm)
Total
weight
(t)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 2330×1660×2300 12
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 2370×1700×2390 15
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 2680×2160×2800 17.7
PF-1214 Φ1250×1400 400×1430 350 80-180 6P   132 2650×2460×2800 22.4
PF-1315 Φ1320×1500 860×1520 500 100-280 6P   200 3180×2720×3120 27
PF-1320 Φ1300×2000 993×2000 500 140-380 6P   250 3220×3100×3120 34
PF-1520 Φ1500×2000 830×2040 700 200-550 4P   315-400 3959×3564×3330 50.6
PF-1820 Φ1800×2000 1260×2040 800 400-800 4P   630-710 4400×3866×4009 83.21
