Three-Cylinder Dryer

Three-Cylinder Dryer

Three-cylinder dryer is an advanced, highly efficient and energy saving product among the wet material drying equipment products.
Email: market@sinoftm.com

Features

Three-cylinder dryer is an advanced, highly efficient and energy saving product among the wet material drying equipment products. It has been widely used for drying slag, clay, coal, iron powder, ore powder and other mixed materials, dry-mixed mortar and yellow sand in the construction industry and for drying raw materials in chemistry and casting industry.

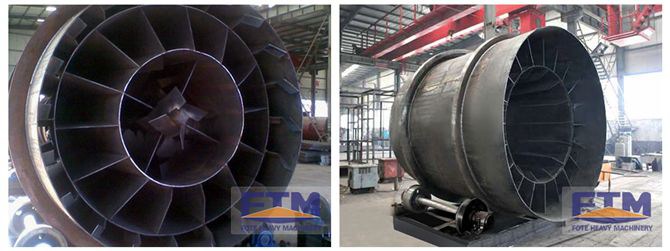

Three-cylinder Dryer

Three-cylinder dryer is improved in the internal structure and increased in the pre-drying of the wet materials before sending them to the machine and extended in the drying time of the wet materials inside the machine, plus sealing and heat preservation and reasonable supporting measures, the production capacity of this dryer machine is improved by 50-80%, the evaporation intensity of unit volume can reach 120-180kg/m³ and the consumption of standard coal is only 6-8kg/t. This machine has advanced technology, reasonable operational parameters and simple operation.

Technical data

Item/Unit/Model Φ2.5×7m Φ2.7×7m Φ3.0×7.0m Φ3.2×7.0m Φ3.6×8m
Diameter of outer cylinder(m) 2.5 2.7 3.0 3.2 3.6
Length of outer cylinder(m) 7 7 7.0 7.0 8
Cylinder volume( m³ ) 16.63 16.63 52.678 52.678 81.38
Rotating speed of cylinder(rpm) 4-10 4-10 4 -10 4 -10 4 -10
Initial moisture of slag(%) 10-12 10-12 10-12 10-12 10-12
Final moisture of slag(%) 1 1 1 1 1
Initial moisture of yellow ground(%) 8-10 8-10 8-10 8-10 8-10
Final moisture of yellow ground (%) 0.5-1 0.5-1 0.5-1 0.5-1 0.5-1
Highest intake air temperature(℃) 700-750℃ 700-750℃ 700-750℃ 700-750℃ 700-750℃
Production capacity(T/h) Yellow sand25-30
Slag20-25
Yellow sand30-35
Slag25-30
Yellow sand35-40
Slag30-35
Yellow sand45-50
Slag35-40
Yellow sand65-70
Slag60-65
Motor type Y2-132m-4E Y2-132m-4E Y2-160m-4 Y2-160m-4 Y2-160m-4
Motor power(kw) 7.5×2 11×2 7.5×4 7.5×4 15×4
Reducer type XWD7-23-11W XWD7-23-11W XWD6-23-7.5KW XWD6-23-7.5KW XWD8-23-15KW
Velocity ratio of reducer 29 29 29 29 29
