Monocular Cooler

Monocular Cooler

Monocular cooler is one of the important machines in compound fertilizer production line and it is used to cool compound fertilizer from kiln and to improve the quality of compound fertilizer.
Email: market@sinoftm.com

Features

Monocular cooler

Monocular cooler is one of the important machines in compound fertilizer production line and it is used to cool compound fertilizer from kiln and to improve the quality of compound fertilizer.
The air after cooling material should be put into the kiln as a secondary air circulation to improve the thermal efficiency of kiln.

Structure of Monocular Cooler

Main composition: 1. cylinder; 2. front roller circle; 3. back roller ring; 4. gear; 5.block rollers; 6. drag roller; 7. pinions ; 8.discharging part; 9. lifting plates; 10. reducer; 11.motor; 12. air channel; 13. feed chute; 14. furnace; 15. cooling water and other components.

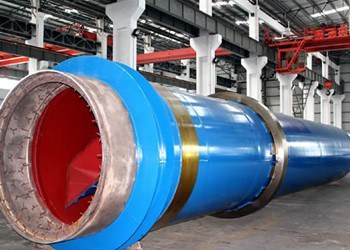

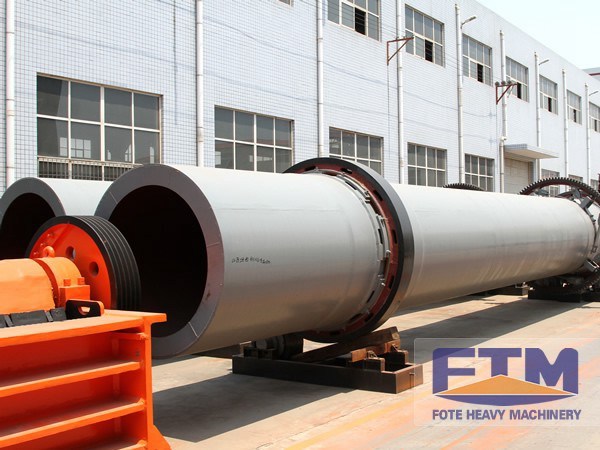

Monocular cooler

Working Principle of Monocular Cooler

The cylindrical cooler is slightly inclined to horizontal rotating cylinder. Material is added from the upper end, and heating medium flows from the lower end, forming counter-current contact with the materials. Sometimes,the heating medium flows into the cylinder with heating body and materias , and runs in the end with the rotation of cylinder by gravity. Wet material in the cylinder body moves forward, either directly or indirectly gets the heat from heat carrier. After the thermal material being cooled, the materials are sent to the discharge end by belt conveyor or screw conveyor.

Technical data

Spec./m
(Dia×Length)
Capacity
(t/h)
Installation
Obliquity
(%)
Main Reducer

Main Motor
(kw)
Weight
(t)
Φ1.5×15 2~3 3~5 ZQ500 15 28
Φ1.5×20 3~4 3~5 ZQ500 15 35
Φ1.8×18 4~6 3~5 ZQ500 18.5 47
Φ2.0×22 7~8.5 3~5 ZQ500 22 61
Φ2.2×18 7~8.5 3~5 ZQ500 22 64
Φ2.2×22 8~10 3~5 ZQ650 30 73
Φ2.4×24 12~15 3~5 ZS125 45 98
Φ2.5×25 15~20 3~5 ZS125 55 110
Φ2.8×28 16~22 3~5 ZL100 55 130
Φ3.0×30 20~25 3~5 ZL115 75 169
Φ3.2×36 28~32 3~5 ZL115 90 200
Φ3.3×40 32~36 3~5 ZI130 132 237
Φ3.6×36 35~38 3~5 ZSY450-28 185 318
Φ4.0×36 50~60 3~5 ZSY450-25 220 348
Φ4.0×45 60~70 3~5 ZSY450-25 250 414
Φ4.5×50 70~75 3~5 ZSY500-25 315 576
