Dry powder Briquette Machine

Dry powder Briquette Machine

Dry powder briquette machine is mainly used for ball making with waste lime powder. In the usage of the machine,there is the need to control the operation of the device.
Email: market@sinoftm.com

Features

1. Introduction of dry powder briquette machine

Dry powder briquette machine or dry powder briquetting machine is mainly used for ball making with waste lime powder. In the usage of the machine,there is the need to control the operation of the device. Dry powder briquetting machine is easy to operate and has high efficiency.

It is currently recognized by the uses. Due to the scientific research of the related institutions in metallurgy industry, this problem has been solved, namely, to use the high-pressure powder ball press machine to press the powder into block for smelting.

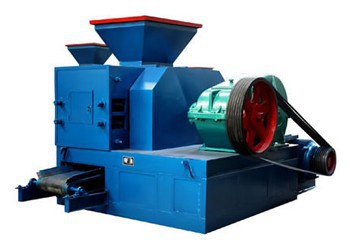

Dry powder briquette machine

2. Application of dry powder briquette machine

Dry powder briquette machine or dry powder briquette making machine is mainly used to make the coal powder, iron powder, coke, aluminum powder, scrap iron, sinter, toner, carbon dust, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke breeze and other powders and wastes be widely used in refractory, power plants, metallurgy, chemical industry, energy, transport, heating and other industries.

briquette machine

The molding materials after the processing of ball press machine are energy saving and easy to transport, improving the utilization rate of waste materials and having good economic and social benefits.

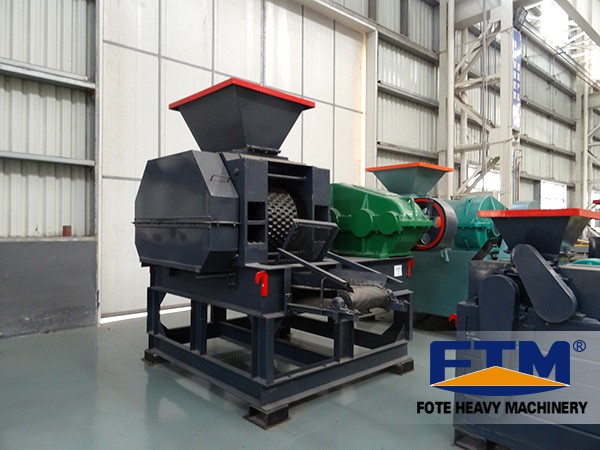

Dry powder briquette machine

3. Structure of dry powder briquette machine

Dry powder briquette making machine or dry powder briquetting machine mainly consists of the host, motor, reducer, transmission device and other components. Its internal parts, the roller skin is made of 65 Mn casting and uses the combination assembly so that it can be replaced after being worn. There is buffer device in the ball press machine and it can protect the device from the impact of hard objects.

Technical data

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
