Hydrostatic Pressure briquette machine

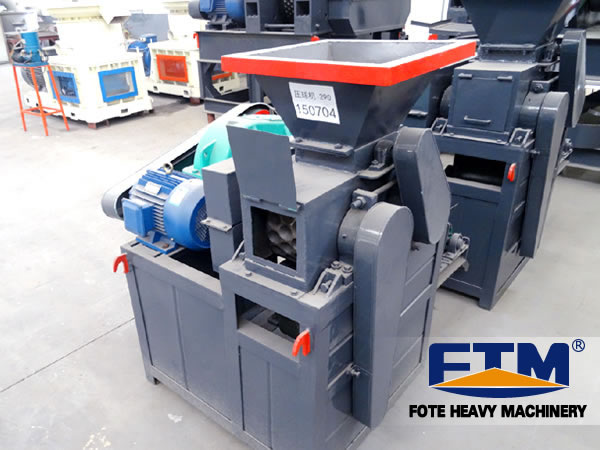

Hydrostatic Pressure briquette machine

Hydrostatic pressure briquette machine is suitable for large, medium and small enterprises to establish production line with certain production scale.
Email: market@sinoftm.com

Features

1.Application of static pressure briquette machine

Static briquetting machine or static pressure briquette machine is suitable for large, medium and small enterprises to establish production line with certain production scale. Hydrostatic pressure briquette machine is suitable for the various moldings of materials in industrial gas making, boiler type, cold type focus, ignition coal, civil coal, civil metallurgy, refractory, medicine and other materials.

Hydrostatic pressure briquette machine can be used for briquetting, pelleting or ball pressing of aluminum powder, activated carbon, alumina, bauxite, caustic soda, charcoal, clay, coke breeze, coal, cryolite, fertilizers, plastics, limestone, pigments, urea, potassium salt etc. Its purpose is to reduce dust, control bulk density, realize the recycle utilization and improve the transport properties.

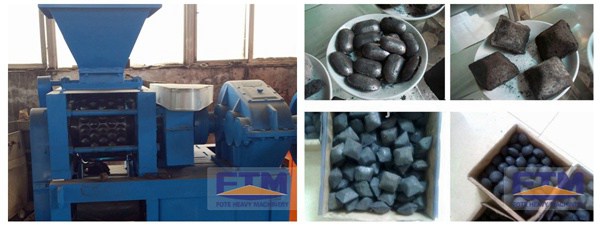

briquette machine

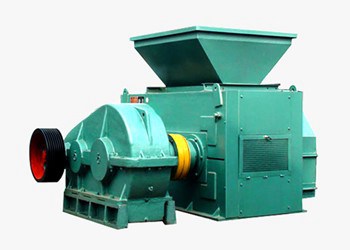

hydrostatic pressure briquette machine

2. Structure of hydrostatic pressure briquette machine

Feeding part: screw feeding device is driven by the electromagnetic adjustable speed motor and the materials will be pressed into the inlet after the rotation of pulley and worm reducer. Transmission part: the main transmission system includes the motor - triangle strips --- reducer -- --- open gear--- roller requirements.
Molding part: it mainly refers to host part and the core part is the roller.

3.Working principle of hydrostatic pressure briquette machine

The roller skin of static briquetting machine or static pressure briquette machine is made of 65 manganese casting and its hardness can be up to 58 degrees after special heat treatment. The roller skin adopts the combination assembly, which makes it easy to take the replacement after being worn.

Technical data

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
