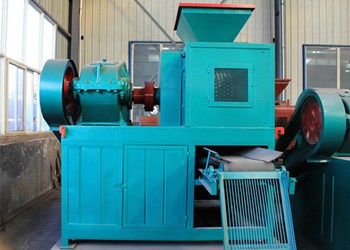

Strong Ball Pressure Machine

Strong Ball Pressure Machine

The strong briquetting machine is mainly used for coal powder, coal, clay, coke, coke powder, refractory and metallurgical powder cold pressed Pellet.
Email: market@sinoftm.com

Features

Application of strong briquetting machine

The strong briquetting machine is mainly used for coal powder, coalclay, coke, coke powder, refractory and metallurgical powder cold pressed Pellet. All powdered materials need to be furnaced can be completed by the strong briquette machine.

strong briquetting machine

Structure of strong briquetting machine

1.Feeding part is expected to ensure the even feeding of materials into the strong briquetting machine or strong briquette machine. Screw feeding device is driven by electromagnetic adjustable speed motor, to press material into inlet of the strong ball press machine.

2.Transmission part, with main drive system of motor-triangle-shaped belt------open gear reducer---rolls.

3.Forming part mainly refers to the host portion, while the hardcore is the roll.

Features of strong briquetting machine

Strong briquette machine has advantages of high efficiency, small power consumption, compact structure, easy to repair and other obvious advantages, so it’s ideal essential equipment for pidge on magnesium process. For meeting the requirement of material forming, the pressure spiral of strong ball pressure machine is with the adjustable speed way of hand controlled type, so users can appropriately change speed of electromagnetic adjustable speed motor according to practical situation to reach the supreme efficiency and maximum capacity.

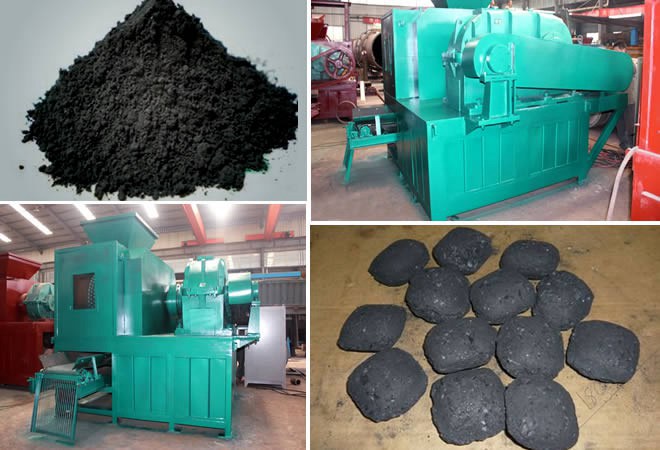

strong briquetting machine

Technical data

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
