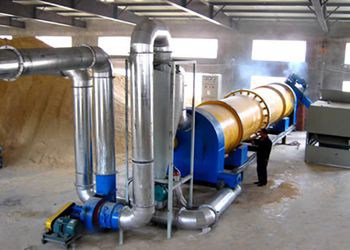

Airflow Dryer

Airflow Dryer

Airflow dryer is also called steam dryer. It uses high-speed heat flow to suspend the material to dry the material. As the flow directly contact with the material particles,
Email: market@sinoftm.com

Features

Airflow dryer is also called steam dryer. It uses high-speed heat flow to suspend the material to dry the material. As the flow directly contact with the material particles, there is good drying effect, and short drying time which is more environmentally friendly and energy saving.

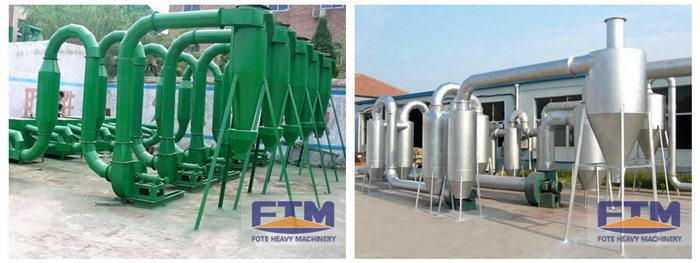

airflow dryer

Airflow Dryer

Air dryer is only suitable for remove surface moisture. Foe the material which contains too much moisture, secondary drying is usually adopted--- remove a part of moisture first and then conduct the airflow drying.
Airflow drying machine is suitable for wood chips, sawdust, pharmaceuticals, coal, resins and other materials.

Technical data

Item/Unit/Model Φ2.5×7m Φ2.7×7m Φ3.0×7.0m Φ3.2×7.0m Φ3.6×8m
Diameter of outer cylinder(m) 2.5 2.7 3.0 3.2 3.6
Length of outer cylinder(m) 7 7 7.0 7.0 8
Cylinder volume( m³ ) 16.63 16.63 52.678 52.678 81.38
Rotating speed of cylinder(rpm) 4-10 4-10 4 -10 4 -10 4 -10
Initial moisture of slag(%) 10-12 10-12 10-12 10-12 10-12
Final moisture of slag(%) 1 1 1 1 1
Initial moisture of yellow ground(%) 8-10 8-10 8-10 8-10 8-10
Final moisture of yellow ground (%) 0.5-1 0.5-1 0.5-1 0.5-1 0.5-1
Highest intake air temperature(℃) 700-750℃ 700-750℃ 700-750℃ 700-750℃ 700-750℃
Production capacity(T/h) Yellow sand25-30
Slag20-25
Yellow sand30-35
Slag25-30
Yellow sand35-40
Slag30-35
Yellow sand45-50
Slag35-40
Yellow sand65-70
Slag60-65
Motor type Y2-132m-4E Y2-132m-4E Y2-160m-4 Y2-160m-4 Y2-160m-4
Motor power(kw) 7.5×2 11×2 7.5×4 7.5×4 15×4
Reducer type XWD7-23-11W XWD7-23-11W XWD6-23-7.5KW XWD6-23-7.5KW XWD8-23-15KW
Velocity ratio of reducer 29 29 29 29 29
