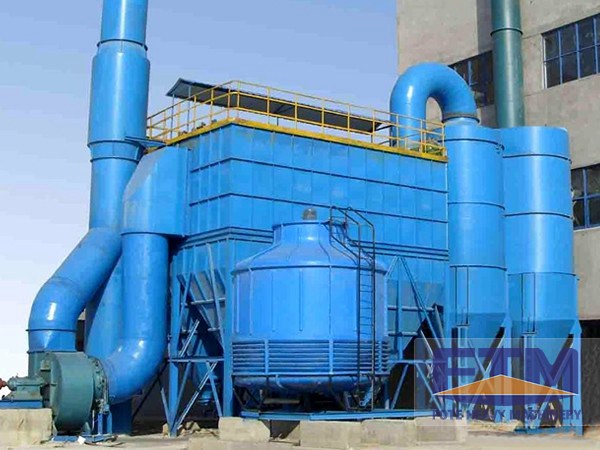

Dust Collector

Dust Collector

Dust collector consists of intake manifold, exhaust manifold, cylinder, cone and hopper. The machine has simple structure, easy installation,
Email: market@sinoftm.com

Features

Structure of Dust Collector

Dust collector consists of intake manifold, exhaust manifold, cylinder, cone and hopper. The machine has simple structure, easy installation, convenient management and low investment, has been widely used for the separation of solid and liquid particles from the gas stream and solid particles from liquid.In normal operating conditions, centrifugal force act on the particle is 5~2500 times larger than gravity, so efficiency of dust collector is significantly higher than that if gravity settling chamber.

Dust Collector

Advantages of Dust Collector

Dust collector is not limited by inlet dust concentration; according to the degree ofdust concentration, the machine can be used for first or single-stage collection respectively. As for corrosive dust and high temperature dust gas, dust collector can also play roles.

Application of Dust Collector

Dust collector is widely used in various industrial and mining enterprises, workshops and construction sites to collect dust generated by metallurgy, casting, crushing, tunnelling, cement, building materials, refractory materials, etc. with good results.Dust collector also canbeused to recover materials.

Technical data

Model filtering area
(m²)
Capcity
(m²/h)
fan model The fan motor Number of filter bag model of matched
german raymond
note
DMC24 18 1080~2160 4-72-3.2A Y90L-2-1.5kw 24
DMC36 27 1620~3240 4-72-3.6A Y100L-2-3kw 36  HGM88 HGM95
DMC48 36 2160~4320 4-68-4A Y112M-2-4kw 48  HGM100
DMC64 48 2880~5760 4-68-4A Y112M-2-4kw 64  HGM130 HGM 120
DMC80 60 3600~7200 4-72-4A Y132S1-2-5.5kw  80
DMC96 72 4320~8640 4-72-4.5A Y132S2-2-7.5kw  96 HGM60 HGM175
DMC112 84 5040~10800 4-72-4.5A Y132S2-2-7.5kw  112  HGM190
DMC128 96 5760~11520 4-72-4.5A Y132S2-2-7.5kw  128   Selecting Based on Air Volume.
More Dust, Lower Filter Wind Speed.
8640~14400 4-72-5A Y160M2-2-15kw  128
DMC150 112.5 6750~13500 4-72-5A Y160M2-2-15kw  150
10000~20000 4-68-6.3C Y180M-2-22kw  150
DMC180 135 12000~24000 4-72-8C Y200L-2-30kw  180   Multipe Dust Collection & Location Timing.
A Settling Room is a Must.
DMC220 165 15000~34000 7-72-8C Y200L-2-37kw  220
