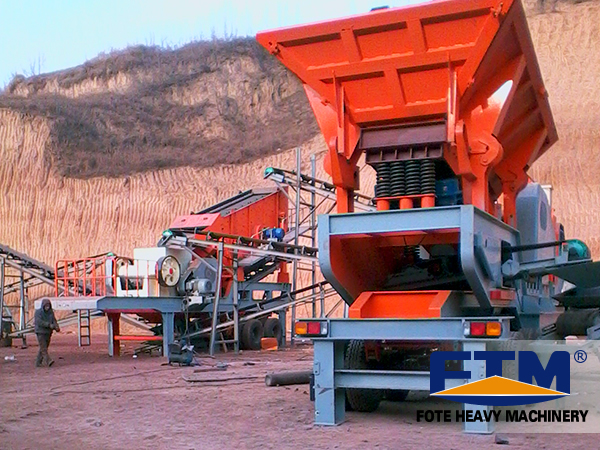

Mobile Crushing plant

Mobile Crushing plant

Mobile crushing plant is a new kind of crushing machine made by Fote Machinery. This equipment is composed of different crushing equipment and screening equipment.
Email: market@sinoftm.com

Features

Introduction of Mobile Crushing Plant

Mobile crushing plant is a new kind of crushing machine made by Fote Machinery. This equipment is composed of different crushing equipment and screening equipment. Mobile crushing plant can be used for stone crushing, ore crushing, construction waste crushing, concrete crushing, ore crushing, coal crushing and so on. It can also be applied in artificial sand production, road, water conservancy, bridge and other industries.

Composition of Mobile Crushing Plant:

Mobile crushing plant is composed by many equipment like feeding equipment, crushing equipment, screening equipment, conveying equipment and so on. Each of the above equipment has many types. For instance, for crushing equipment, there are jaw crusher, cone crusher, sand making machine, impact crusher and so on to satisfy the actual situation of the customers.

The Applicable Materials of Mobile Crushing plant

 Stone, ore
Stone, ore

Construction waste
Construction waste

concrete
concrete

brick
brick

glass
glass

coal
coal

Classification of Mobile Crushing Plant

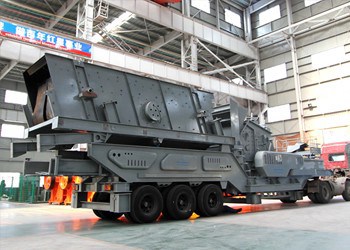

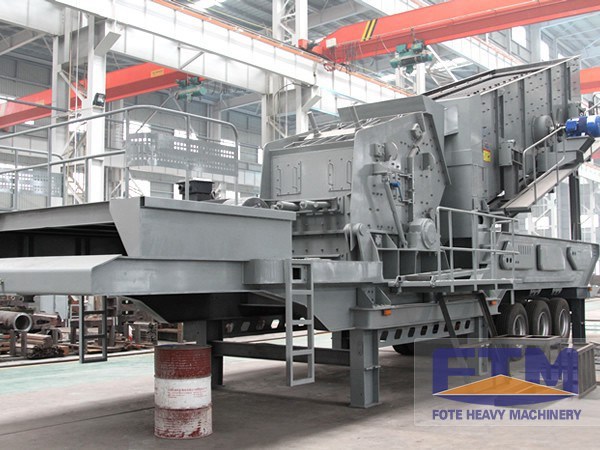

Tyre Mobile Crushing Plant

Tyre Mobile Crushing Plant

The tyre mobile crushing plant adopts the tyre mobile platform. It has simple structure and easy to maintain. The tyre mobile crushing plant itself has no motor, and it is driven by the locomotive so that it is easier to enter in the working site. The tyre can conduct the coarse, medium, and fine crushing of the materials at site. In addition, tyre crushing plant reduces the transportation cost.

Crawler Mobile Crushing Plant

Crawler mobile crushing plant is different from the tyre mobile crushing plant. This equipment adopts crawler as its mobile platform and has motor itself so it can move powered by itself. With no pull of the external force, it can move smoothly and is safer. Crawler mobile crushing plant can adapt to complex terrain better and can be set at any position. This kind of equipment is new type crushing plant with high technology and higher automatic degree.

Advantages of Mobile Crushing Plant

Mobile crushing plant uses the tyre or crawler as its mobile platform that improves the flexibility of the whole crushing plant. It is getting easier to lay the equipment under bad circumstance or at narrow place. What’s more, it is faster to complete the construction of the mobile platform to make it earlier to production. Mobile crushing plant can drive into the crushing site which can reduce the transportation of the material to save the costs.

Mobile Crushing plant Manufacturer

Fote Machinery is a large mobile crushing plant manufacturer and we have years of research and production experience of crushing plant. The products sold to many countries and regions all over the world. Fote Machiery can customize the mobile crushing plant according to your needs. You can leave a message or send us an e-mail to get contact with us. Welcome the worldwide friends to pay a visit.

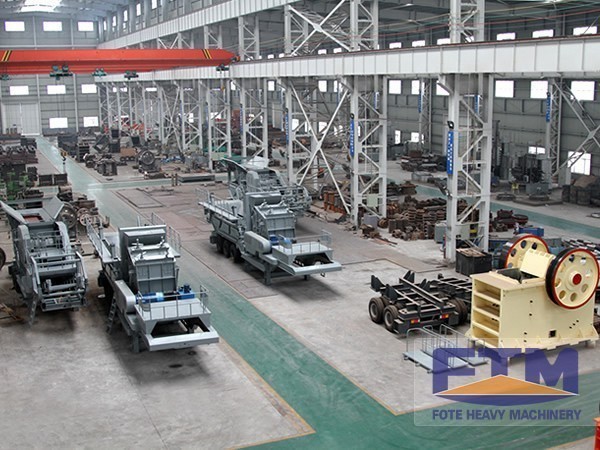

Production Workshop of Mobile Crushing Plant

Production Workshop of Mobile Crushing Plant

Technical data

MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS

Model FTM938F1210 FTM938FW1214 FTM1149F1315 FTM1349HD1110 FTM1349HD1315
Transportation Length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size(mm) 350 350 500 400 700
Production Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) (kw) 320 320 400 320 440
Iron Separator (Optional)(kw) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model FTM938HD80 FTM1149HD98 FTM1349HD110 FTM1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
