Flotation Machine

Flotation Machine

The flotation machine is driven by V-belt drive motor rotating impeller to create negative pressure by centrifugal vacuum. The flotation cell is a very important part of the flotation machine.
Email: market@sinoftm.com

Features

Basic Information to Flotation Machine:

The flotation machine is driven by V-belt drive motor rotating impeller to create negative pressure by centrifugal vacuum. The flotation cell is a very important part of the flotation machine.The flotation cell, on the one hand, absorbs enough air mixed with plenty of pulp.

On the other hand, stirring the pulp mixed with drugs, the flotation machine refines foam to adhere to the mineral and float to the surface and then form the slurry bubble mineralization. You can adjust the height of the flashboard to control surface so that the useful foam could be scraped.


Fote is a copper ore flotation machine manufacturer with high reputation in China. The flotation separator price is quite reasonable and the quality is guaranteed.

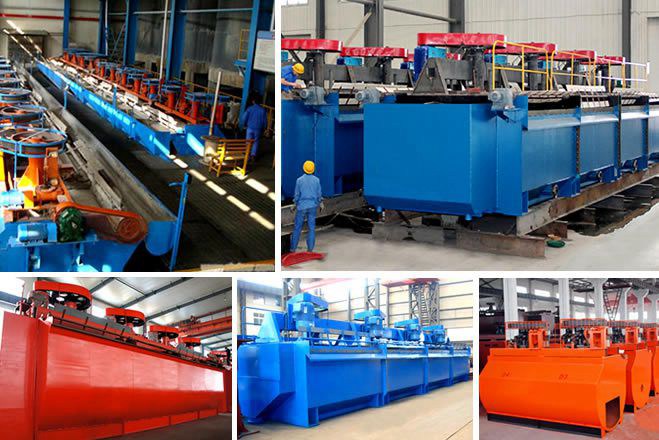

Flotation machine

Applied Materials of Flotation Cell:

Flotation cell or flotation machine is mainly used for sorting copper, zinc, lead, nickel, gold and other metals, and it can also be used for ferrous metals and non-metallic materials.

Technical data

Category Specification
Model
Effective
cubage
(m³)
Processing
capacity
(m³/min)
Main shaft     loam board Dimensions
(L×W×H)
(m)
Single
 trough
Weight
(t)
Power
(kw)
Rotate
speed
(r/min)
Rotate
 speed
(r/min)
Power
(kw)
XJK type
flotation
machine
XJK-0.35 0.35 0.18-0.4 1.5 483 25 1.1 0.7×0.7×0.7 0.5
XJK-0.62 0.62 0.3-0.9 3.0 400 25 1.1 0.90×0.82×0.85 1.0
XJK-1.1 1.1 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1 1.4
XJK-2.8 2.8 1.5-3.5 11 280 25 1.1 1.75×1.6×1.1 2.5
XJK-5.8 5.8 5-7 22 240 25 1.5 2.2×2.2×1.2 3.6
SF type
flotation
machine
SF-0.37 0.37 0.2-0.4 1.5 386 25 1.1 0.7×0.7×0.75 0.5
SF-0.7 0.7 0.3-0.9 3 400 25 1.1 0.9×0.82×0.95 1.0
SF-1.2 1.2 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1.1 1.9
SF-2.8 2.8 1.5-3.5 11 268 25 1.1 1.75×1.6×1.15 2.6
SF-4 4 2-4 15 220 25 1.5 1.85×2.05×1.2 2.9
SF-8 8 4-8 30 191 25 1.5 2.2×2.9×1.4 4.2
SF-10 10 5-10 30 191 25 1.5 2.2×2.9×1.7 4.5
SF-20 20 5-20 30×2 191 25 1.5 2.85×3.8×2 9.9
JJF type
flotation
machine
JJF-2 2 1-3 7.5 443 25 1.5 1.4×1.4×1.1 1.7
JJF-4 4 2-4 11 305 25 1.5 1.6×2.15×1.25 2.4
JJF-8 8 4-8 22 233 25 1.5 2.2×2.9×1.4 4.5
JJF-10 10 5-10 22 233 25 1.5 2.2×2.9×1.7 4.9
JJF-16 16 5-16 30 180 25 1.5 2.85×3.8×1.7 8.0
JJF-20 20 5-20 37 180 25 1.5 2.9×3.8×2.0 10.5
