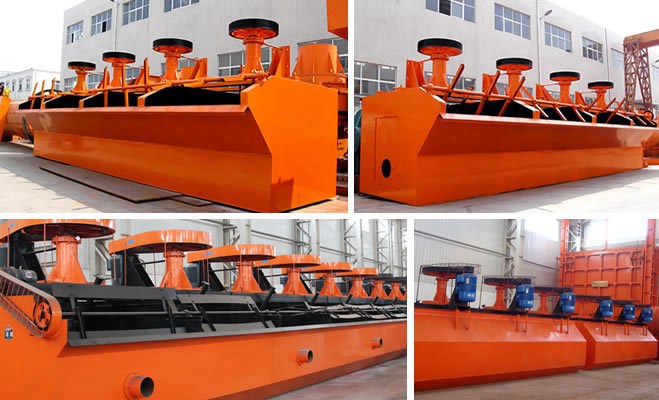

Agitator Type Flotation Machine

Agitator Type Flotation Machine

Flotation machine is tapered blade impeller with the vane tilting at an angle. It is similar to the high specific speed centrifugal pump wheel.
Email: market@sinoftm.com

Features

What is Agitator Type Flotation Machine:

Flotation machine is tapered blade impeller with the vane tilting at an angle. It is similar to the high specific speed centrifugal pump wheel.

There is a porous cylindrical air distributor in the impeller chamber to make the air can be uniformly dispersed in advance in most regions of the impeller blades to create a larger interface for pulp - air contact.

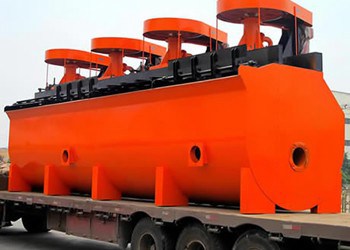

Agitator Type Flotation Machine

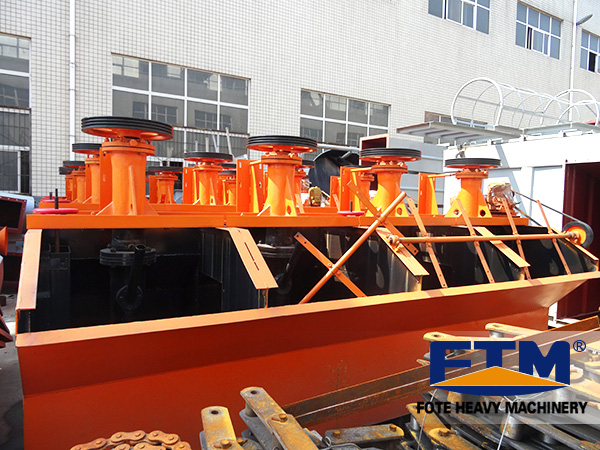

Agitator type flotation machine

Fote is a famous agitator type flotation separator supplier. The agitator type flotation cell price is low and the quality is guaranteed. Welcome to choose Fote product.

Unique Features:

1.High capacity,
2.Small head,
3.Low power consumption,
4.Simple structure.

Technical data

Model XCF-1 XCF-2 XCF-3 XCF-4 XCF-8 XCF-16 XCF-24 XCF-38
Dimensions Length(mm) 1000 1300 1600 1800 2200 2800 3100 3600
Width(mm) 1000 1300 1600 1800 2200 2800 3100 3600
Height(mm) 1100 1250 1400 1500 1950 2400 10819 3400
Single Effective Weight(t) 1.2 1.7 2.3 2.7 3.9 6.6 8.0 16.8
Effective cubage(m³) 1 2 3 4 8 16 24 38
Production Capacity calculated by slurry volume(m³/min) 0.2—1 0.4—2 0.6—3 1.2—4 3—8 4—16 4—24 10—38
Main shaft motor Model Y132M2-6 Y160M-6 Y160L-6 Y180L-6 Y200L2-6 Y280S-8 Y280S-8 Y280S-6
Power(kw) 5.5 7.5 11 15 22 37 37 45
Impeller Rotate speed(r/min) 960 970 970 970 970 740 740 980
Diameter(mm) 400 460 540 620 720 860 950
Height(mm) 155 175 207 247 321 349
Rotate speed(r/min) 358 331 266 215 185 160 153
Circular velocity(m/s) 7.5 7.5 7.5 7 6.97 7.6 7.6 7.4
loam board motor Model Y90S-4 Y90S-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4
Power(kw) 1.1 1.1 1.5 1.5 1.5 1.5 1.5 1.5
Rotate speed(r/min) 1400 1400 1400 1400 1400 1400 1400 1400
loam board Rotate speed(r/min) 18 18 16 16 16 16 16 16
Diameter(mm) 500 500 580 600 600 700 700 700
Wind pressure of fan (kpa) ≥12.6 ≥14.7 ≥19.8 ≥19.8 ≥21.6 ≥25.5 ≥30.4 ≥34.3
Max. air injection amount(m³/㎡·min) 2 2 2 2 2 2 2 2
