Shaking Table
Dressing table is also called gravity shaking table. The shaking table can make mineral particles move according to their density and particle size varies along different directions, and from the beginning of the mine shafts fanning out along the diagonal, followed by discharge along the edge of the bed, and the discharge line is very long.
The shaking table is able to estate a variety of different quality products such as concentrates, secondary concentrates, the concentrates and tailings.
Fote is a famous concentrating table supplier in China. The small gold shaking table price is quite reasonable and the quality is quite high.

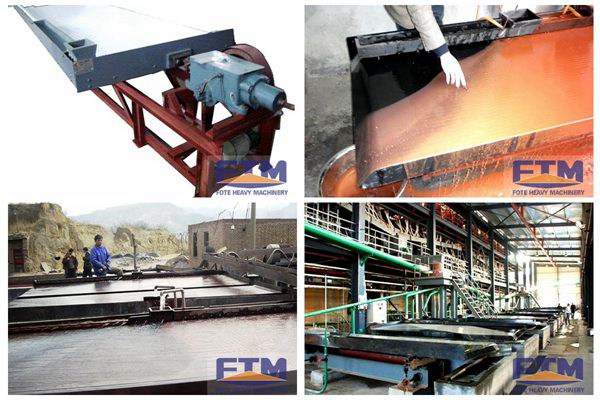

Shaking table usually consists of three major beds, chassis and transmission mechanism. In addition, there are red sink, mine shafts, base, etc.. The entire bed supported by a rack or lift, slope adjustment device fitted on the rack.
| Name | Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
| Bed surface Dimensions |
Length (mm) |
4450 | 4450 | 4450 |
| Driving part Width (mm) |
1855 | 1855 | 1855 | |
| Concentrate part Width (mm) |
1546 | 1546 | 1546 | |
| Max.feeding size(mm) |
2 | 0.5 | 0.15 | |
| Feeding amount (t/d) |
30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) |
25-30 | 20-25 | 15-25 | |
| Stroke (mm) |
16-22 | 11-16 | 8-16 | |
| Frequency (f) |
45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity (t/d) |
80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) |
2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) |
1.4 | 0.92 | ---- | |
| Table board corner(°) |
32-42 | 40 | 42 | |
| Concentrating area(㎡) |
7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio |
2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface |
Rectangle | Zigzag | Triangle | |
| Motor power(kw) |
1.1 | 1.1 | 1.1 | |
| Transmission device |
Eccentricity Linkage | |||
