Vibrating Feeder

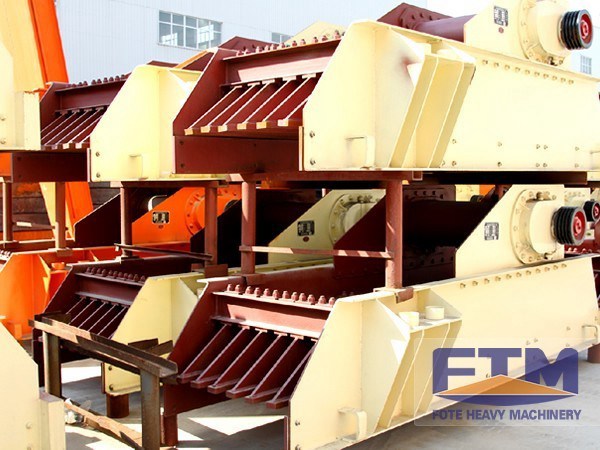

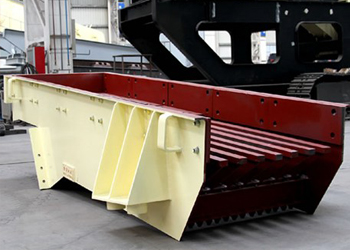

Vibrating feeder is also called vibratory feeder or ore vibrating feeder, and vibrating grizzly feeder is a important member of vibrating feeder.
In the production process, vibrating feeder can feed the bulk or particle material into the material receiving device from the storage bin uniformly and constantly. Vibratory feeder is widely used in metallurgy, coal, mineral processing, building materials, chemicals, abrasives and other industries.
Fote is a famous vibration feeder supplier in China. The vibrating grizzly feeders made in Fote Machinery have got high reputation in domestic and foreign market. If you want to know more about the product and company, you can get in touch with us.
1. Small size, light weight, simple structure;
2. Easy maintenance, low operating costs;
3. High efficiency, large feeding capacity;
4. Low power consumption, high power factor
5. Low noise, stable performance
| Model | Max. Feeding Size (mm) |
Processing Capacity (t/h) |
Motor Power (kw) |
Obliquity of material trough (°) |
Trough size (mm) |
Dimensions (L×W×H)(mm) |
| GZD-650×2300 | 300 | 80-100 | 1.2×2 | 10-20 | 650×2300 | 2300×1360×780 |
| GZD-750×2500 | 350 | 100-130 | 1.5×2 | 10-20 | 750×2500 | 2500×1460×780 |
| GZD-850×3000 | 400 | 120-150 | 3×2 | 10-20 | 850×3000 | 3110×1800×1600 |
| GZD-1000×3600 | 500 | 150-200 | 3.7×2 | 10-20 | 1000×3600 | 3850×1950×1630 |
| GZD-1100×3600 | 580 | 240-300 | 3.7×2 | 10-20 | 1100×3600 | 3600×2050×1660 |
| GZD-1300×3600 | 650 | 450-600 | 7.5×2 | 10-20 | 1300×3600 | 3900×2350×1750 |
| GZD-1500×3600 | 1050 | 450-1000 | 7.5×2 | 10-20 | 1500×3600 | 3900×2000×1750 |
| GZD-2000×3600 | 1200 | 550-1000 | 10×2 | 10-20 | 2000×3600 | 3600×2000×1750 |
| GZD-2500×5000 | 1500 | 650-1500 | 18×2 | 10-20 | 2500×5000 | 5000×2500×1800 |
| ZSW-380×95 | 500 | 100-180 | 11 | 0-10 | 3800×960 | 3920×1640×1320 |
| ZSW-490×110 | 630 | 150-400 | 15 | 0-10 | 4900×1100 | 4980×1830×1320 |
| ZSW-490×130 | 750 | 400-700 | 22 | 0-10 | 4900×1300 | 4980×2580×2083 |
| ZSW-600×130 | 750 | 400-700 | 22 | 0-10 | 6000×1300 | 6082×2580×2083 |
| ZSW-600×150 | 800 | 500-900 | 30 | 0-10 | 6000×1300 | 6086×2662×1912 |
| ZSW-600×180 | 900 | 700-1300 | 45 | 0-10 | 6000×1500 | 6310×3262×2230 |
| ZSW-600×200 | 1200 | 800-1500 | 55 | 0-10 | 6000×2000 | 6310×3462×2230 |
