Belt Conveyor

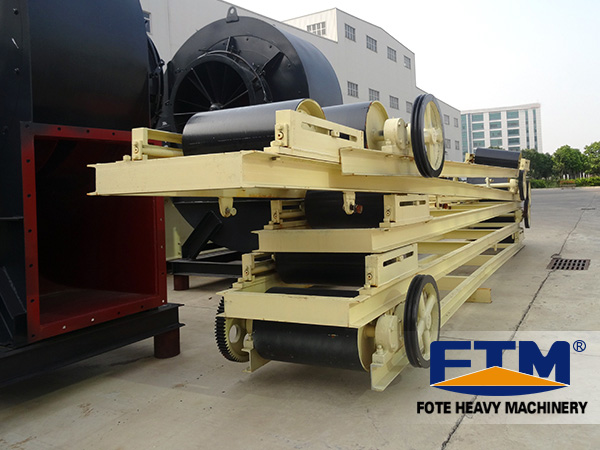

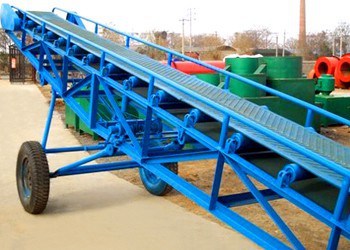

Belt conveyor, also known as conveyor belt or chained conveyor. It can be widely used in mining, metallurgy, coal and other departments to transport loose materials or items. According to the transport process requirements, it can be a single conveyor or other horizontal or inclined conveyor systems to meet different types of operating line needs.

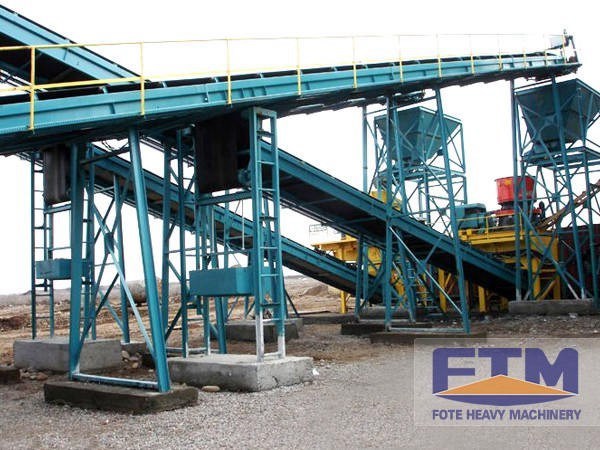

Belt conveyor can conduct horizontal, inclined convey and can also be composed of the space of the transfer line, and the transfer line is typically fixed. Belt conveyor has large transport capacity and long transport distance.
1. Large transport capacity, long transport distance.
2. Low noise, simple structure,
3. Easy maintenance, low energy consumption,
| Belt width(mm) | Conveying length(m) Power(kw) |
Conveying speed(m/s) | Conveying amount(t/h) | ||
| 400 | ≤10 3 |
12-15 3-4 |
15-30 4-7.5 |
1.25-2.0 | 30-60 |
| 500 | ≤10 3 |
12-15 4-5.5 |
15-30 5.5-7.5 |
1.25-2.0 | 40-80 |
| 650 | ≤10 4 |
12-15 7.5 |
15-30 7.5-11 |
1.25-2.0 | 80-120 |
| 800 | ≤10 4 |
12-15 7.5 |
15-30 7.5-15 |
1.25-2.0 | 120-200 |
| 1000 | ≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.25-2.0 | 200-320 |
| 1200 | ≤10 7.5 |
10-20 7.5-15 |
20-40 15-30 |
1.25-2.0 | 290-480 |
| 1400 | ≤10 11 |
10-20 15-22 |
20-40 22-45 |
1.25-2.0 | 400-680 |
| 1600 | ≤10 15 |
10-20 22-30 |
20-50 30-75 |
1.25-2.0 | 600-1080 |
| 1800 | ≤10 18.5 |
10-20 30-45 |
20-50 45-110 |
1.0-2.0 | 800-1500 |
| 2000 | ≤10 22 |
10-20 45-55 |
20-50 55-132 |
1.0-2.0 | 1000-2000 |
| 2400 | ≤10 30 |
10-20 55-75 |
20-50 75-185 |
1.0-2.0 | 1500-3000 |
