Teeth Roller Crusher

Teeth Roller Crusher

The crushing tooth of teeth roll crusher is in spiral arrangement. As a final check of granularity equipment, teeth roll crusher product uniform particle.
Email: market@sinoftm.com

Features

Brief Introduction:

The crushing tooth of teeth roll crusher is in spiral arrangement. As a final check of granularity equipment, teeth roll crusher product uniform particle. Applicable to coal, coal, gangue, coke, gypsum, bauxite ore, sinter, solid waste and other hard-strong following materials broken; crushed under a variety of conditions apply to mine underground mining, factories, open-air environment, etc.

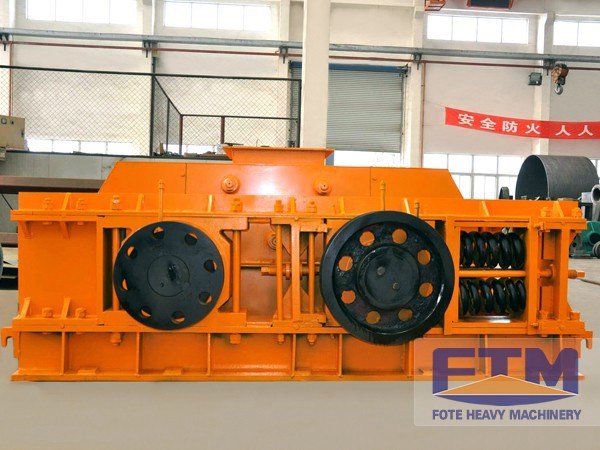

Teeth roller crusher

Toothed roll crusher is especially suitable for crushing bituminous coal, anthracite coal, coke, slag, refractory materials, etc., with no requirements on moisture of broken material. Advantages: low noise, simple structure, easy to maintenance, etc. What’ more, it can be widely used in coal, electricity, building materials, chemical industry, metallurgy, non-metallic minerals, environmental protection and other industries.

Toothed roll crusher has sharp tooth on crushing rollers, like figure below:

Sharp tooth of toothed roll crusher

Features:

1. Low energy consumption;

2. Pairs of toothed rollers are driven by a single motor, simple structure, stable operation, little vibration, low noise and less dust;

3. Broken teeth roll is made of high strength wear-resistant alloy, durable, easy to replace;

4. High adaptability.

Fote is a toothed-roll crusher supplier and double toothed roll crusher manufacturer with high reputation. The products all have high quality and perfect. Leave us a message for more product details and price list?

Technical data

Model Roller
diameter
(mm)
Roller
length
(mm)
Max.
Feeding
 Size
(mm)
Discharging
size(mm)
Output
(t/h)
Motor
power
(kw)
Total
weight(t)
Overall
dimension
(L×W×H)
(mm)
2PGC600×500 600 500 200-450 15-100 30-60 4P   11×2 3.8 2450×1800×950
2PGC600×800 600 750 300-600 20-120 60-100 4P   18.5×2 7.2 4500×1900×1350
2PGC800×1000 800 1000 500-800 30-150 100-160 4P   22×2 12.6 2550×2050×1100
2PGC1000×1000 1000 1000 700-950 30-200 150-200 6P   45×2 18.8 2780×4100×1550
2PGC1200×1200 1200 1200 800-1050 30-200 180-250 6P   55×2 29.5 2780×3200×1980
2PGC1500×1200 1500 1200 1000-1150 30-200 200-300 6P   75×2 38.6 8010×4500×2050
