Cassava Dryer

Cassava Dryer

Cassava dryer is widely used in the drying of materials with high humidity like cassava, cassava and so on and its heating efficiency amounts to 85%.
Email: market@sinoftm.com

Features

General Introduction of Cassava Dryer

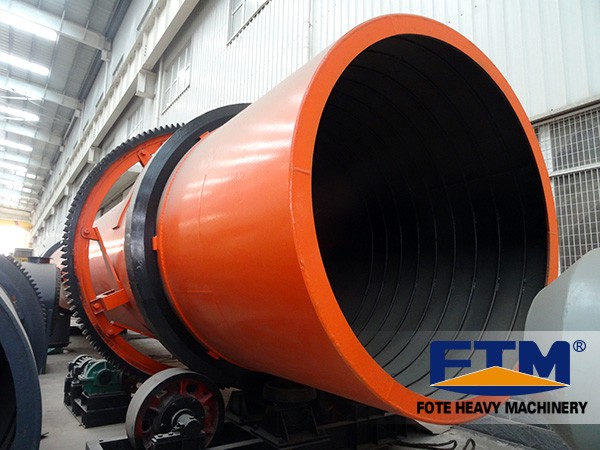

Cassava dryer or cassava dregs dryer is widely used in the drying of materials with high humidity like cassava, cassava and so on and its heating efficiency amounts to 85%. Cassava dryer is a machine with full automatic control, continuous operations, and high thermal efficiency.

Cassava dryer consists of heating source, feeding machine, rotary drum, material discharge machine, induced draft fan, unloader and power distribution cabinet. After entering into the dryer, cassava is turned over uniformly and evenly dispersed in the dryer and make full access to the hot air that accelerates drying heat, and mass transfer.

dryer

Fote is a famous cassava drying machine manufacturer and cassava dryer supplier. The products are all with high quality and reasonable price. Please get contact with us to know more detailed information about the machine. We’ll always at your service.

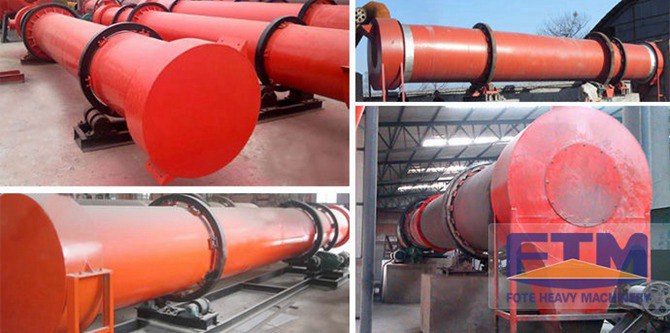

cassava dryer

Features of Cassava Dryer

1. Compact structure and easy to move. Cassava dregs dryer is installed on the whole rack and moves by the front head traction. There is a quick leg fixed in production activity which is solid and reliable. It is convenient to change the site. Good economic performance and reliable performance;

2. High drying intensity. Cassava dryer adopts cycle drying process. The special plate in cylinder ensures full access of thermal energy and materials in a dynamic process and the water vapor quickly discharged. It has larger productivity than any other dryer with the same volume.

3. Automatic operation and thermotechnical CNC control. Smooth and reliable operation. Temperature can be regulated automatically which improves the stability of the temperature of hot air, and dry product quality can be guaranteed.

4. Low cost power, stable operation, easy maintenance. Use energy-efficient coal-fired hot air furnace, and multi-level heat recovery systems so that integrated thermal efficiency is increased by more than 10% and decreases the cost significantly.

5. Dry product quality is stable. Uniform moisture content. When material is under negative pressure, it avoids easy oxide material deterioration. The material in the drying process is not affected by pollution, and minimum losses of nutrient content of drying material.

Technical data

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
